Freud’s new General Purpose saw blades offer the ultimate value and high durability in production environments. Starting with Freud’s own industry leading TiCo Hi-Density carbide specifically formulated for wood processing delivers up to 3X lower total applied cost over typical production runs of over 5,000 cuts. Utilizing 30% more carbide on the teeth than most other blades allow Freud’s General Purpose blades to outlast and exceed the number of sharpenings, lowering the cost of purchasing new blades, downtime an lost labor hours. Freud’s Alternate Top Bevel (ATB) grind gives a flawless, repeatable cut for less rework and scrap commonly caused by cheaply made, inferior production blades. Built on the legacy and featured technology of Freud’s LSBX Panel sizing blades, these blades can turn a table saw into a high production saw when coupled with Freud Certified Sharpening partners throughout the U.S. Ideal For:Suitable for Ripping and Crosscutting
This ultimate combination blade combines one flat tooth for ripping, followed by four alternate top bevel teeth for crosscutting and a large gullet for effective chip clearance. This blade also features laser cut anti-vibration slots, practically eliminating the vibration that resonates in standard blades. With this ultimate combination blade, there is no need for stabilizers. Ideal For:Crosscuts (3/4" to 3-1/2") & Rips (3/8" to 1-1/2").
10" Combination Saw Blade 4 ATB + 1 Raker
10" Cross-Cut Saw Blade ATB
Designed to give long life and excellent finish on the top and bottom of laminates, melamine & veneered plywood. The laser-cut anti-vibration design yields the plate acoustically dead. This reduces the sideways movement of the cutting edge to prevent chipping in manmade materials such as laminates. This dramatically extends cutting life and finish. No scoring blades needed with this blade! Ideal For:Excellent finish on the top and bottom of laminates, melamine & veneered plywood. Depth of cut (1/4" min to 1-5/8" max)
10" Fine Cross-Cut Saw Blade ATB
10" Fine Cross-Cut Saw Blade TCG
10" Glue Line Rip Saw Blade TCG
This multi-purpose blade will cut stacks of manmade wood products as well as hardwood and softwood up to 2-3/4" thick. The blade’s deep gullets and TCG rip and crosscut through hardwoods and softwoods with ease. Although the ideal working range is 1/2" to 2-3/4" thick, thinner or thicker materials may be cut, resulting in some loss of surface finish Ideal For:Stacked Chipboard And Manmade Materials. Crosscuts (1/2" to 2-3/4") & Rips (3/4" to 3/8" ).
10" Heavy Duty Rip Saw Blade Flat Top
This industrial blade cuts acrylics, polycarbonates and other plastics, leaving a smooth finish without melting. By combining micrograin carbide tips with a specially modified triple chip grind these blades will give a clean smooth cut. These blades produce less heat keeping the cut edge crisp. Ideal For:Plexiglass and Plastics. Depth of cut (1/4" to 1-5/8").
10" Radial Arm Saw Blade 2 ATB + 1 Raker
This heavy-duty production blade produces an excellent finish on the top and bottom of thick laminates and melamine. The LU92M series is ideal for cutting stacked 3/4" laminates and melamine. Each tooth has a special modified triple chip grind design created by computer simulation to breeze through thick stock and single or double-sided laminates, leaving a chip-free edge. Ideal For:Double Sided Laminates and Stacked Chipboard is ideal for cutting stacked 3/4" laminates and melamine
This blade gives new life to underpowered table saws and radial arm saws because the thin kerf does not require much horsepower. The Perma-SHIELD™ coating helps this blade pull 1/3 less on the saw, which translates into over 33% more cutting power. The ideal working range is from 3/4" to 2-3/4" thick. Ideal For:Heavy-Duty Ripping Blades For Underpowered Saws. Depth of cut (3/4" to 2-3/4").
The LU79 thin kerf line of saw blades provides flawless, chip-free edges in veneered plywoods, fine moldings, melamine, laminates, and crosscuts in solid woods. Using advanced technology, Freud developed the LU79 thin kerf line of saw blades that features laser-cut, anti-vibration slots that practically eliminate the vibrations that resonate in standard blades. This blade provides flawless, chip-free edges in veneered plywoods, fine moldings, melamine, laminates, and crosscuts in solid woods. The combination of Hi-ATB tooth design and anti-vibration slots makes these thin kerf blades the ultimate finish blades. The result is a cut so smooth it eliminates the need for a stabilizer or a scoring blade! Ideal For:Flawless Finish In Veneered Plywood, Chip Board, Melamine & Laminates For Virtually Chip-Free Cuts. Depth of cut (1/4" min to 1-5/8" max)
The LU80 saw blade provides flawless, chip free edges in veneered plywoods, fine moldings, melamine, laminates, and crosscuts in solid woods. Ideal For:Flawless Finish In Veneered Plywood, Chip Board, Melamine & Laminate - Depth of cut (1/4" min to 1-5/8" max)
12" Combination Saw Blade 4 ATB + 1 Raker
12" Cross-Cut Saw Blade ATB
12" Fine Cross-Cut Saw Blade ATB
12" Fine Cross-Cut Saw Blade TCG
12" Glue Line Rip Saw Blade TCG
12" Heavy Duty Rip Saw Blade Flat Top
12" Radial Arm Saw Blade 2 ATB + 1 Raker
12" Standard Cross-Cut Saw Blade ATB
This thin kerf industrial blade provides a superior finish cut with sliding compound miter saws. The 5° negative hook angle helps prevent the blade from being too aggressive and pushes the work piece down and towards the fence. Thin kerf blades remove less material than standard carbide blades, thus requiring less horsepower to produce equally good results. Ideal For:Fine Finish Blades For Sliding Miter & Radial Arm Saws. Depth of cut (1/2" min to 2-3/4" max)
Freud’s extensive panel sizing range now includes a dedicated line of scoring saw blade options featuring Polycrystalline Diamond (PCD). This range of PCD saw blades features exacting grinds for a precision cut in all man-made panel materials including MDF, plywood, melamine and HPL coated materials. Freud’s PCD scoring blades are proven to last up to 75X over traditional carbide blades for the “lowest applied tooling cost” of any scoring blade available on the market today. The PCD series is available in both H4 “Semi Disposable” and H6 “Fully Resharpenable” versions, allowing the user to select based on the material and preferred value position.
Freud is one of the few manufacturers of woodworking tools in the world that produces its own Micrograin Carbide for each tool application. Ideal For:To score the coating on bilaminated panels.
14" Combination Saw Blade 4 ATB + 1 Raker
14" Fine Cross-Cut Saw Blade ATB
14" Fine Cross-Cut Saw Blade TCG
This heavy-duty blade is good for crosscutting thick hardwoods and softwoods and thinner stock materials. The ideal working range is from 3/4" to 3-1/2" thick for crosscutting, and 1/4" to 1" thick for ripping. Thinner or thicker material may be cut, but some loss of surface finish may occur Ideal For:For Heavy-Duty General Purpose Applications. Crosscuts (3/4" to 3-1/2") & Rips (1/4" to 1").

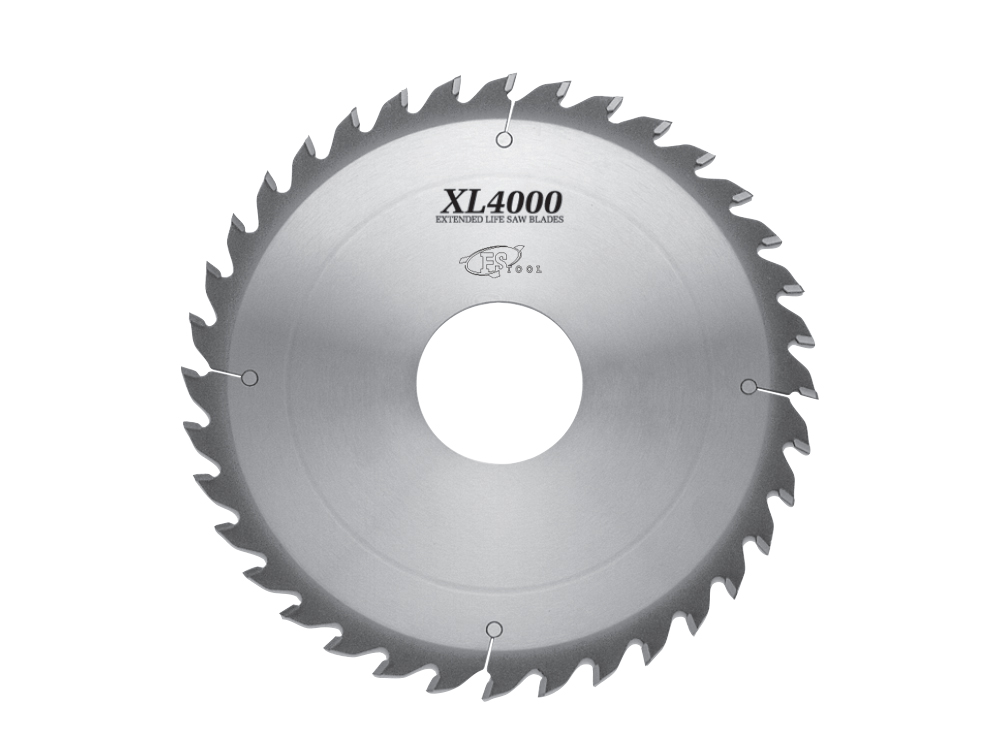

14" Glue Line Rip Saw Blade TCG

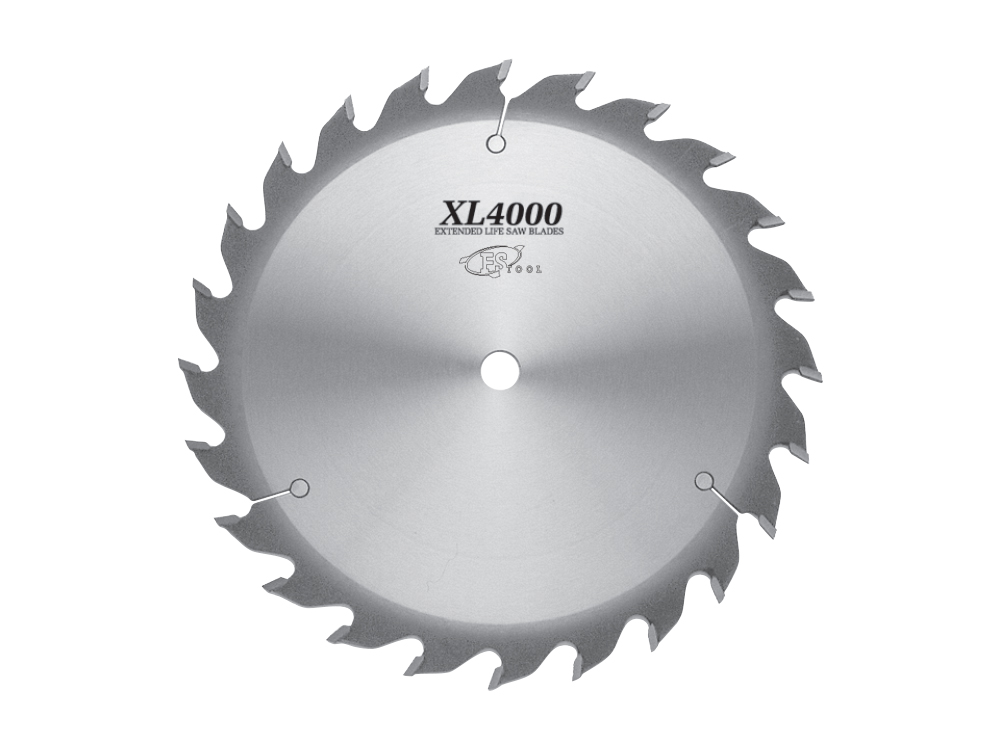

14" Heavy Duty Rip Saw Blade Flat Top
14" Radial Arm Saw Blade 4 ATB + 1 Raker
14" Standard Cross-Cut Saw Blade ATB
This heavy-duty, non-ferrous metal cutting blade produces an excellent finish. These blades have custom designed gullets to minimize chip build-up and specially formulated carbide for long life. Freud recommends use of a liquid lubricant when cutting. This can be accomplished with a spray of WD-40 or other lubricant every 4 to 5 cuts. Wax sticks are not recommended Ideal For:Cutting Thick Non-Ferrous Materials and Aluminum. Wall thickness 1/4" Max.
Freud is one of the few manufacturers of woodworking tools in the world that produces its own Micrograin Carbide for each tool application. Ideal For:To score bilaminated panels with very fragile plastic coating
Freud is one of the few manufacturers of woodworking tools in the world that produces its own Micrograin Carbide for each tool application. Ideal For:To score bilaminated panels with plastic coating with laminate or thermo hardened resins.
Freud is one of the few manufacturers of woodworking tools in the world that produces its own Micrograin Carbide for each tool application. Ideal For:Scoring sawblades for cutting coated panels, on sizing machines.
16" Standard Cross-Cut Saw Blade ATB
This heavy-duty blade is good for crosscutting thick hardwoods and softwoods and thinner stock materials. The ideal working range is from 3/4" to 3-1/2" thick for crosscutting, and 1/4" to 1" thick for ripping. Thinner or thicker material may be cut, but some loss of surface finish may occur Ideal For:For Heavy-Duty General Purpose Applications. Crosscuts (3/4" to 3-1/2") & Rips (1/4" to1").
Carbide-Tipped blade for cutting aluminum and non-ferrous metals with Freud's exclusive TiCo Hi-Density Carbide designed and manufactured specifically for each cutting application to maximize cutting life. Ideal For:To cut drawn products and tubes whose thickness exceeds 5 mm. It is recommendable to use it with the sawblade over the workpiece to be cut.
Carbide Tipped Blade for Ripping and Crosscutting Wooden Panels and Composites. Sawblades for cutting wooden panels and composites. Ideal For:Suitable for Ripping and Crosscutting
